FILAFLEX 82A Sample Size 25gm, Original Elastic Flexible TPU 3D Printing Material US, 1.75mm

FILAFLEX 82A Sample Size 25gm, Original Elastic Flexible TPU 3D Printing Material US, 1.75mm

Regular price $5.00 USD
Regular price $33.00 USD Sale price $5.00 USD
Sale Sold out
Diameter
Size
Color

FILAFLEX 82A

The Filaflex 82A Original is the flagship elastic filament of the Filaflex range. The best-selling and most popular flexible filament for 3D printers.

  • Shore hardness 82A
  • 650% stretch
  • High elasticity
  • Resistant to solvents, fuel and acetone
  • Odorless
  • No hotbed required
  • Made in the EU

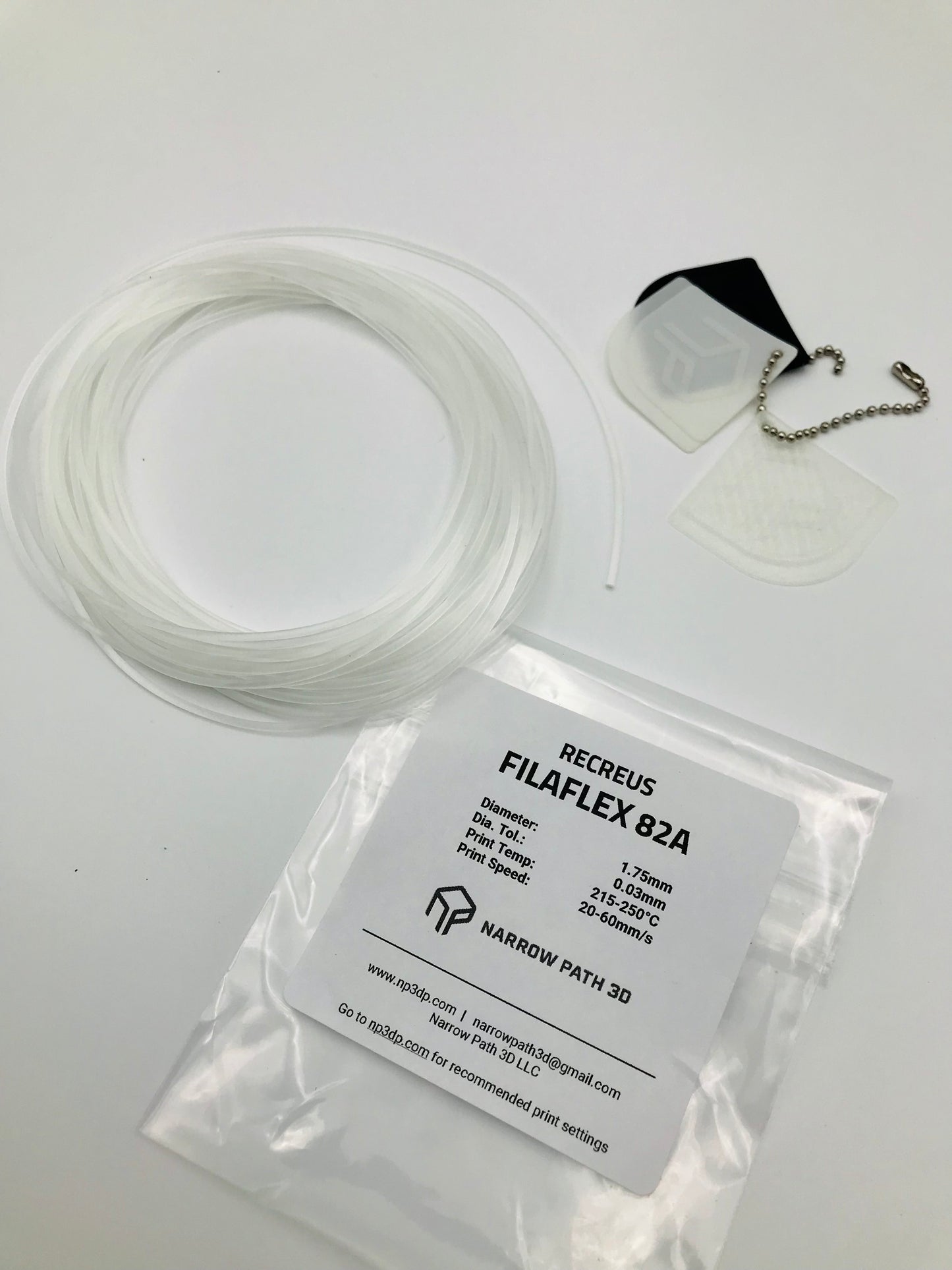

This is a 1X pcs. 25gm sample for testing and comparing different elasticities to help you find the right material for your project.

True Elasticity

The Filaflex 82A ‘Original’ is a TPU (thermoplastic polyurethane) elastic filament with a shore hardness of 82A, meaning that it can stretch by up to 650% before breaking. Its greatest advantage is that after stretching, it returns to its original shape without deforming or breaking.

The filaments of the Filaflex range have great print bed adhesion, so they don’t need a heated bed, blue tape, Kapton tape, lacquer or any other spray adhesive. What’s more, they are odorless and resistant to solvents, acetone and fuel. Different guidelines are required for printing with Filaflex. That’s why the 3D printer needs to be properly configured.

How to get started with Filaflex? If you're new to printing flexibles, we recommend this article on what to know and how to print with flexible materials.



APPLICATIONS

Filaflex 82A is non-toxic and may come in contact with the skin. Consult for medical or food use. It can be used to create:

– Insoles: orthotic insoles.

– Prostheses and models of organs: prosthetic arms and hands, organs for simulation of surgical operations, etc.

– Flexible objects and parts for manufacturing and the automotive industry: stoppers, joints, tires, grippers, etc.

– Textile parts and accessories: textile garments, fabrics, prints on garments, bags, earrings, etc.

– Footwear: soles, shoes, sandals, slippers, etc.



TECHNICAL DATA

Basic Print Settings to get started:

Print temperature: 215-250 °C
Print speed: 20-60 mm/s
Diameter tolerance: 0.03 mm
Retractions: from 4-8 mm/s to 40 mm/s. In the extreme case of a clogged extruder, make sure you disable retractions.
Increase the flow if the extrusion of the filament is intermittent, between 105 % – 115 %.
Reduce the pressure of the lever arm that presses the filament onto the motor pulley to avoid clogging the filament and causing blockages.



TDS and MSDS:


Click Here to View the TDS (Technical Data Sheet)

Click Here to View the MSDS (Material Safety Data Sheet)
