Narrow Path 3D

FIBERLOGY CPE HT Sample Size 20-40gm- Easy and Durable Food Safe Filament for Makers, 1.75mm

FIBERLOGY CPE HT Sample Size 20-40gm- Easy and Durable Food Safe Filament for Makers, 1.75mm

Regular price $5.00 USD
Regular price Sale price $5.00 USD
Sale Sold out

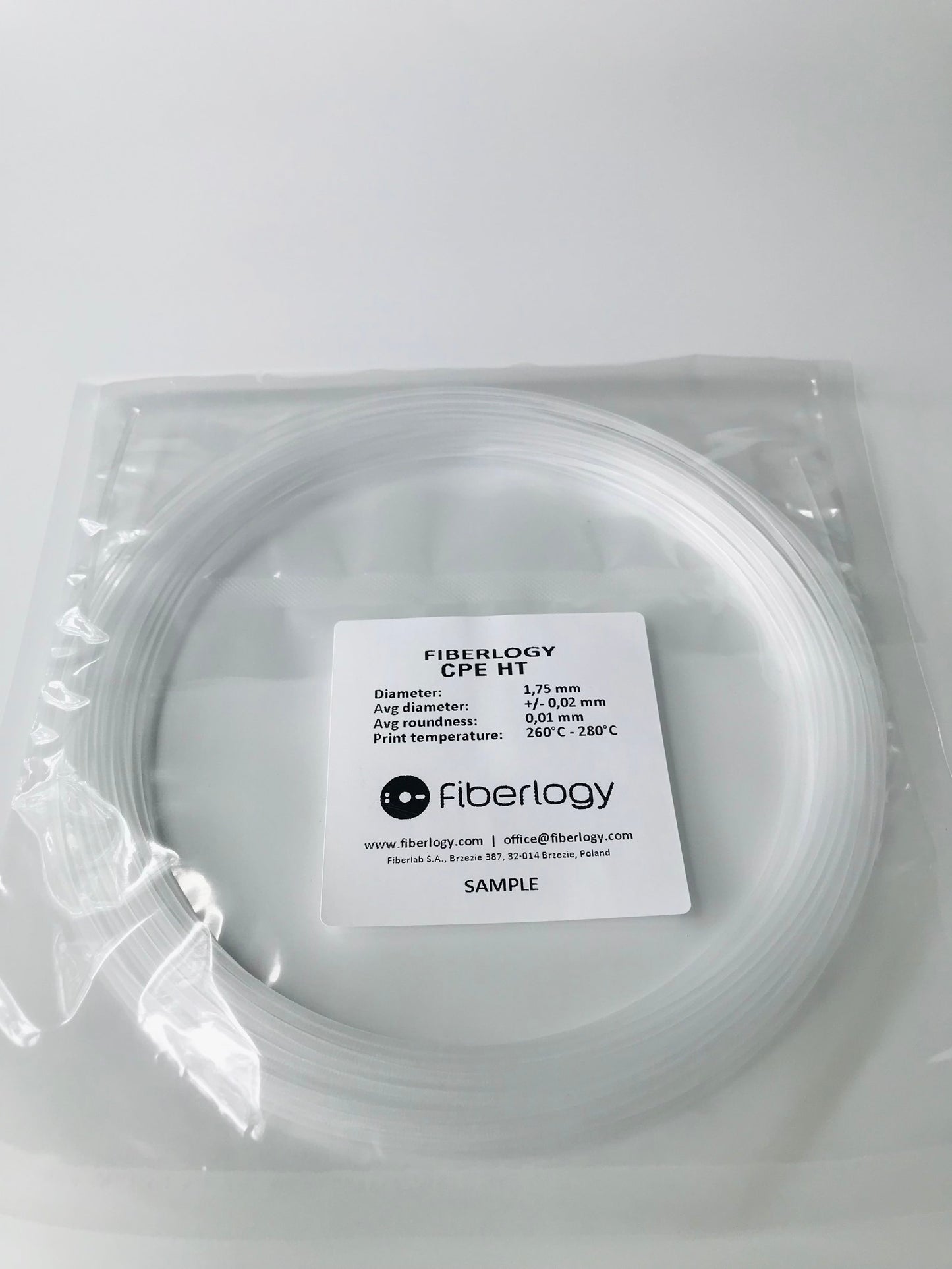

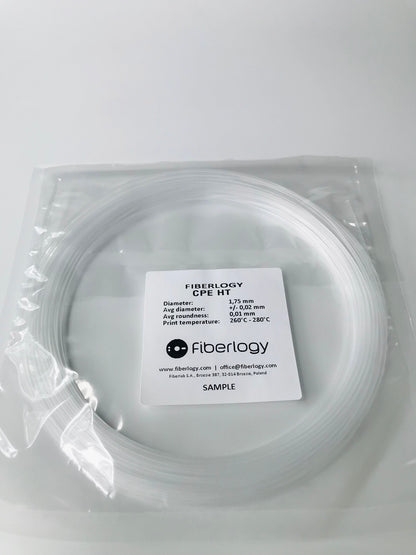

Sample Size:

  • Samples are a great option for trying out a new material, color or when comparing different testing parameters of similar options.
  • Samples vary in weight as different materials have different densities and generally range from 20-40 grams.

Key Features at a glance:

  • Fiberlogy CPE HT features one of the highest temperature resistances of materials able to be printed on the standard home use FDM 3D printer -  Prints made with CPE HT can withstand temperatures up to  110°C
  • No closed heated chamber required
  • No order and  BPA, BPS and styrenes-free
  • Excellent mechanical strength comparable to the PC line

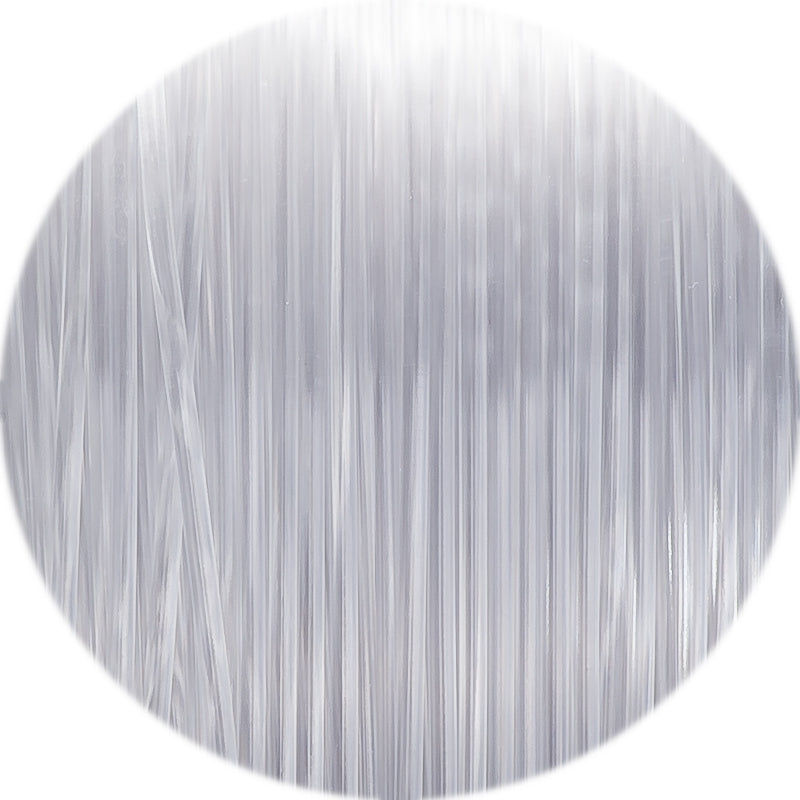

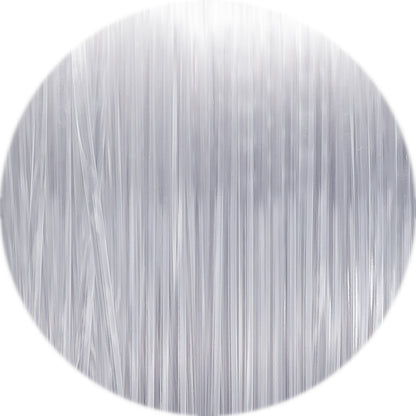

  • Pure Translucent color

THE NEXT GENERATION OF CO-POLYESTERS

Fiberlogy CPE HT is a modern co-polyester that stands out for its high mechanical and temperature resistance. As a member of the polymers family, which includes PET-G and PCTG, it surpasses them in terms of resistance to high temperatures, even up to 110°C. Like other related materials, this filament has a high resistance to chemicals and lipids.

It is odorless and BPA, BPS and styrene free and can be used to create food contact parts *. CPE HT will find numerous applications that require resistance to degrading conditions, such as in a dishwasher or in the process of chemical sterilization or UV radiation.

Fiberlogy CPE HT is an attractive alternative to polycarbonate filaments. Having similar strength parameters as PC, it does not share with it the characteristics that make it difficult to work with and use.
* applies to the filament in the Pure TR version

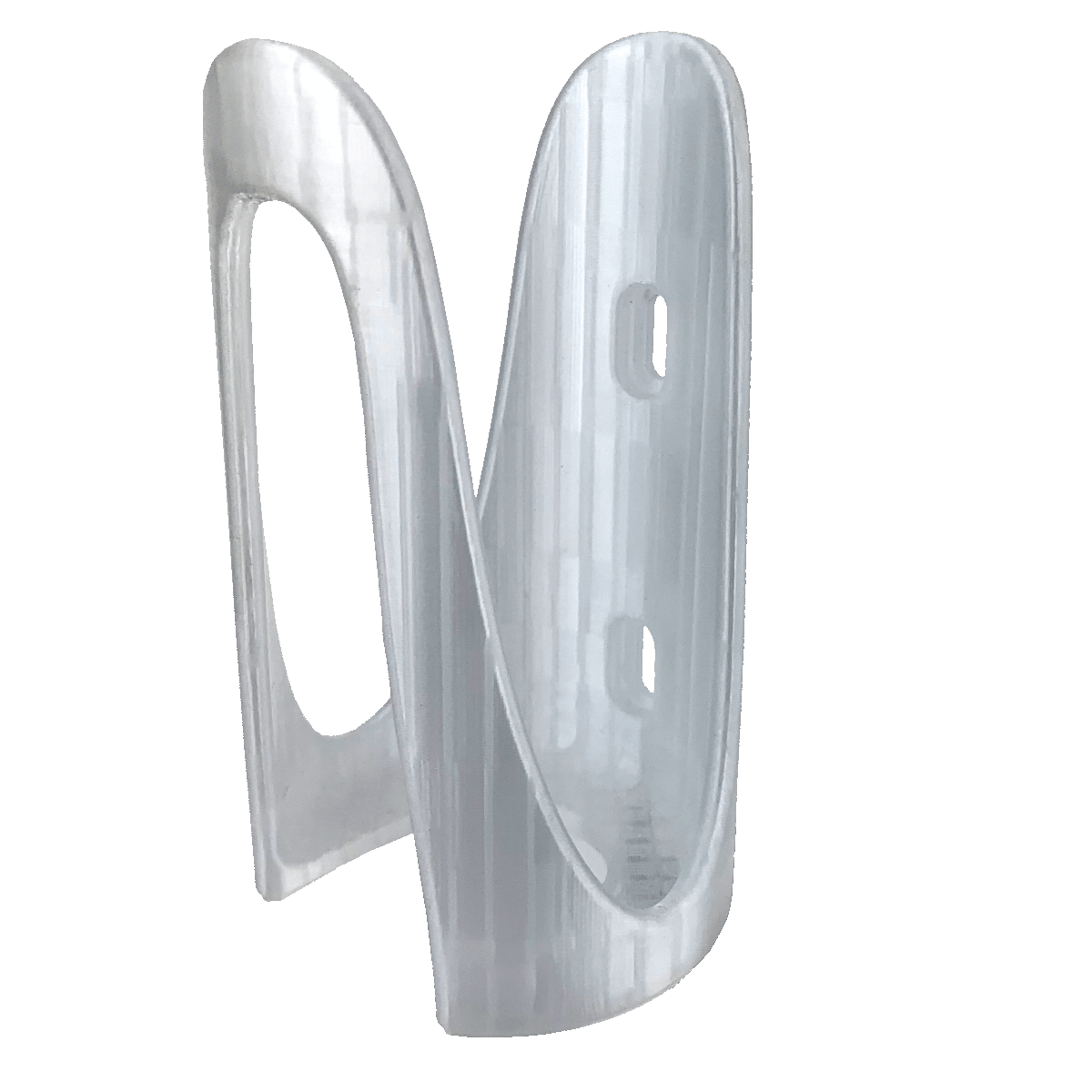

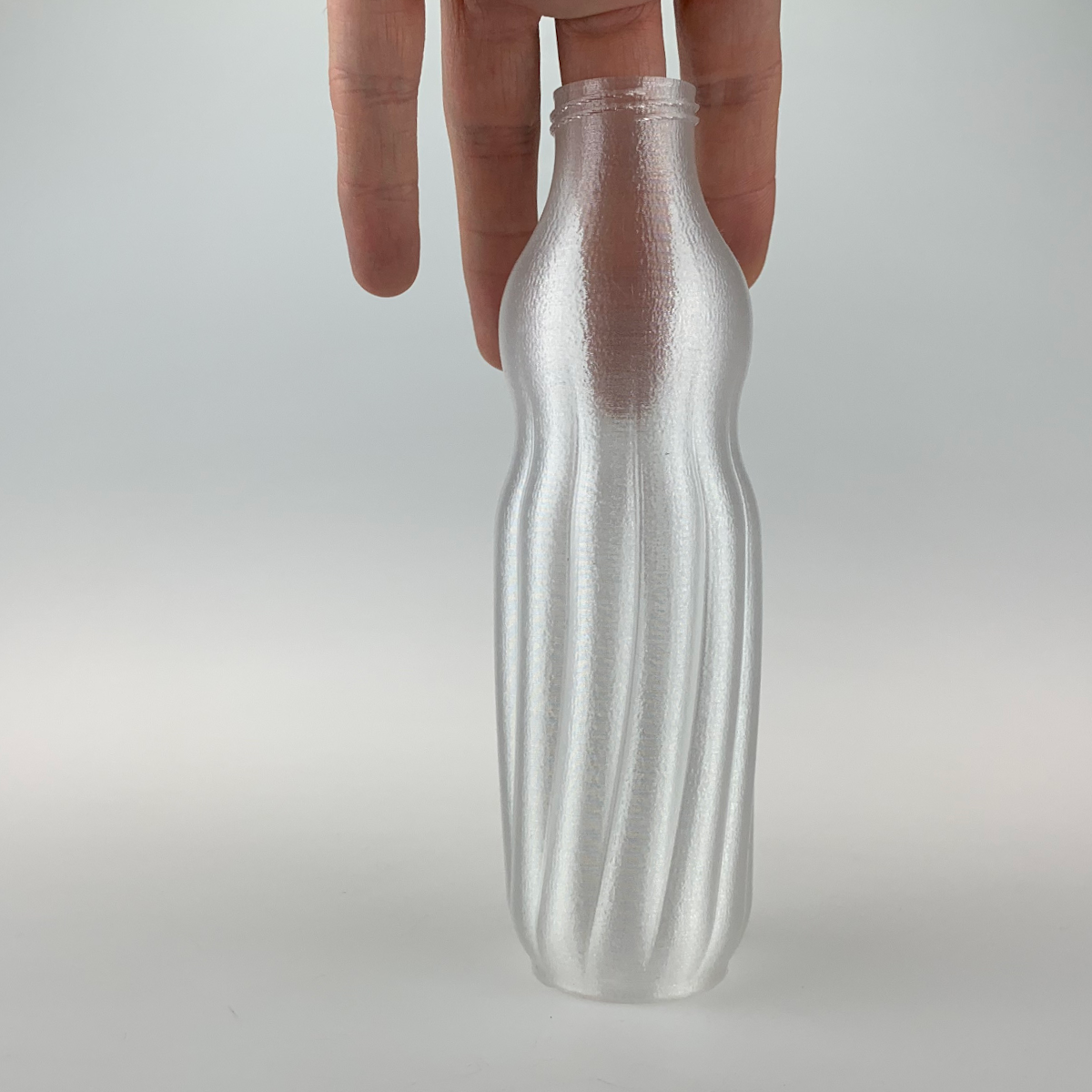

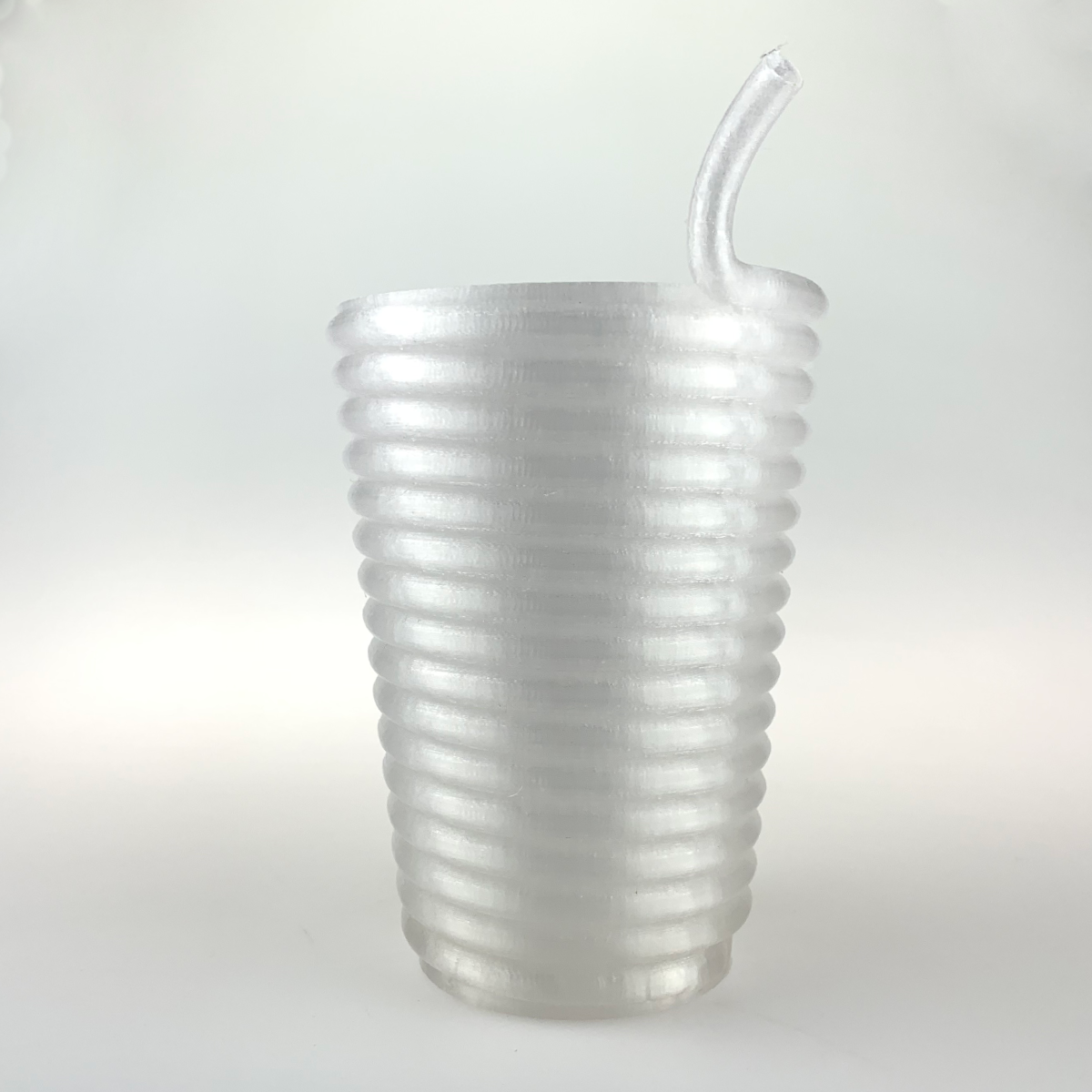

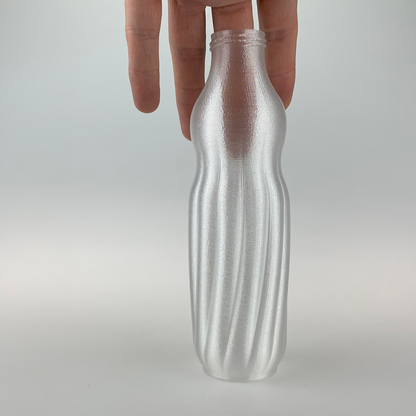

Printing Ideas and Applications:

  • HOME USE: food storage containers, reusable dishes
  • CHILDREN’S ARTICLES: toys and spare parts, accessories for babies
  • HOUSEHOLD APPLIANCES: appliance housings, spare parts, utility prototypes, water filters

How to print?

The following parameters are suggested print settings for this material. To ensure the best print quality, it is necessary to choose the appropriate settings for a specific printer and printing conditions.



Nozzle Temperature 260-280°C
Bed Temperature 110-120°C
Closed chamber not required
Fan 0-15%
Flowrate 95-105%
Printing Speed < 100 mm/s
Surface masking tape, PVA glue, hairspray
Retraction (direct) 1-2 mm
Retraction (bowden) 4-6 mm
Retraction Speed 20-45 mm/s
Drying conditions 60°C / 4h
Notes Due to the strong adhesion to the bed, it is not recommended to print directly on its surface or on glass. This can lead to damage. We recommend using a masking tape, and to remove as soon as finished printing.

TDS and MSDS:


Net Weight: 0.75kg

FIBERLOGY 3D Printing filament comes wound on a premium white spool in vacuum sealed bag with a desiccate packet to maintain peak conditions.
