FIBERLOGY PCTG Sample Size, 20-40gm - The Alternative to PET-G , 1.75mm
FIBERLOGY PCTG Sample Size, 20-40gm - The Alternative to PET-G , 1.75mm
Couldn't load pickup availability
Key Features at a glance:
- Excellent impact strength (up to 20X times greater than standard PET-G)
- Excellent chemical resistance (see TDS for more details)

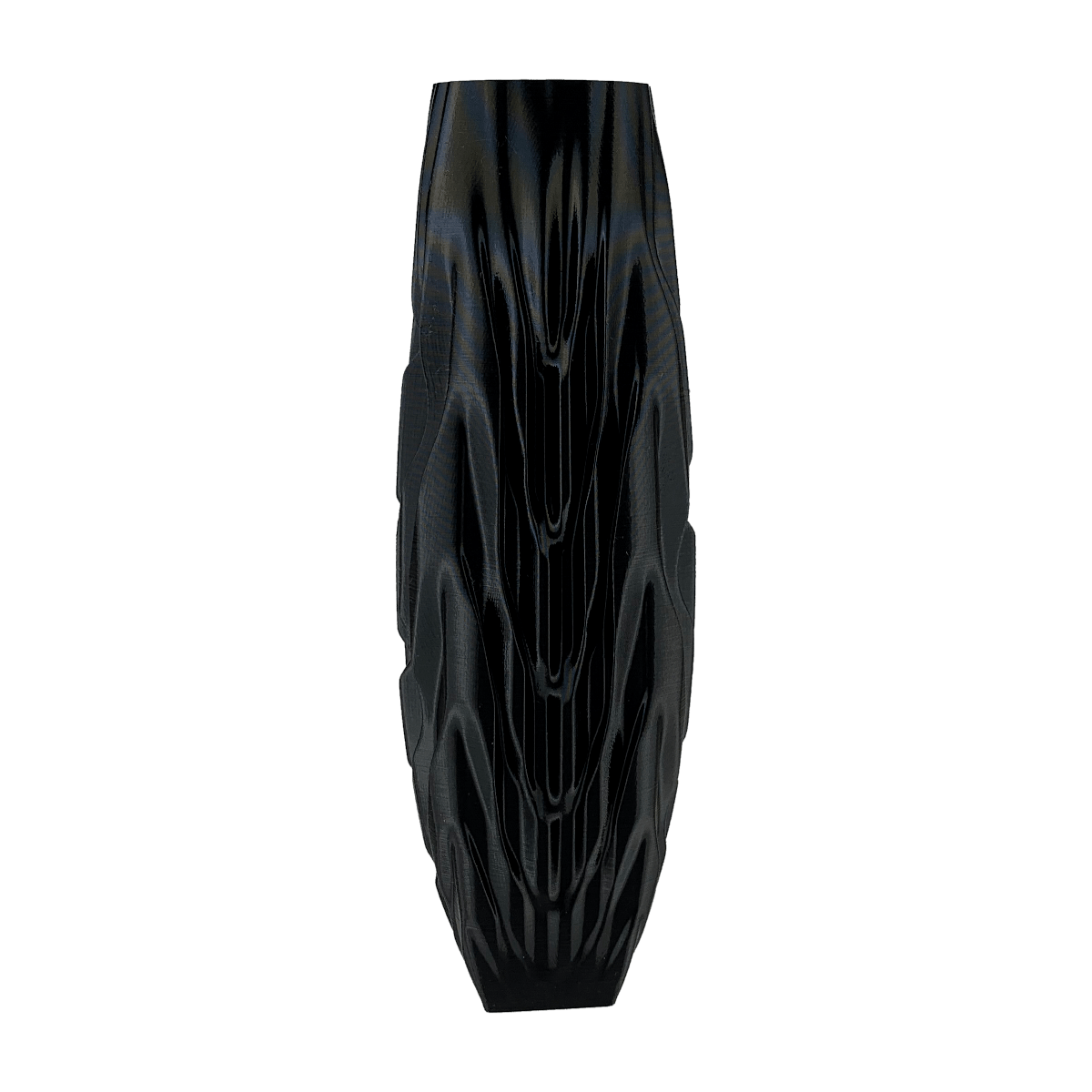

- High visual transparency making it a great choice for decorative items where high durability is desired
- Easy to print with dimensional stability, and low shrinkage making this material great for beginners as well as more advanced printers
- Suitable for contact with food*, and BPA free

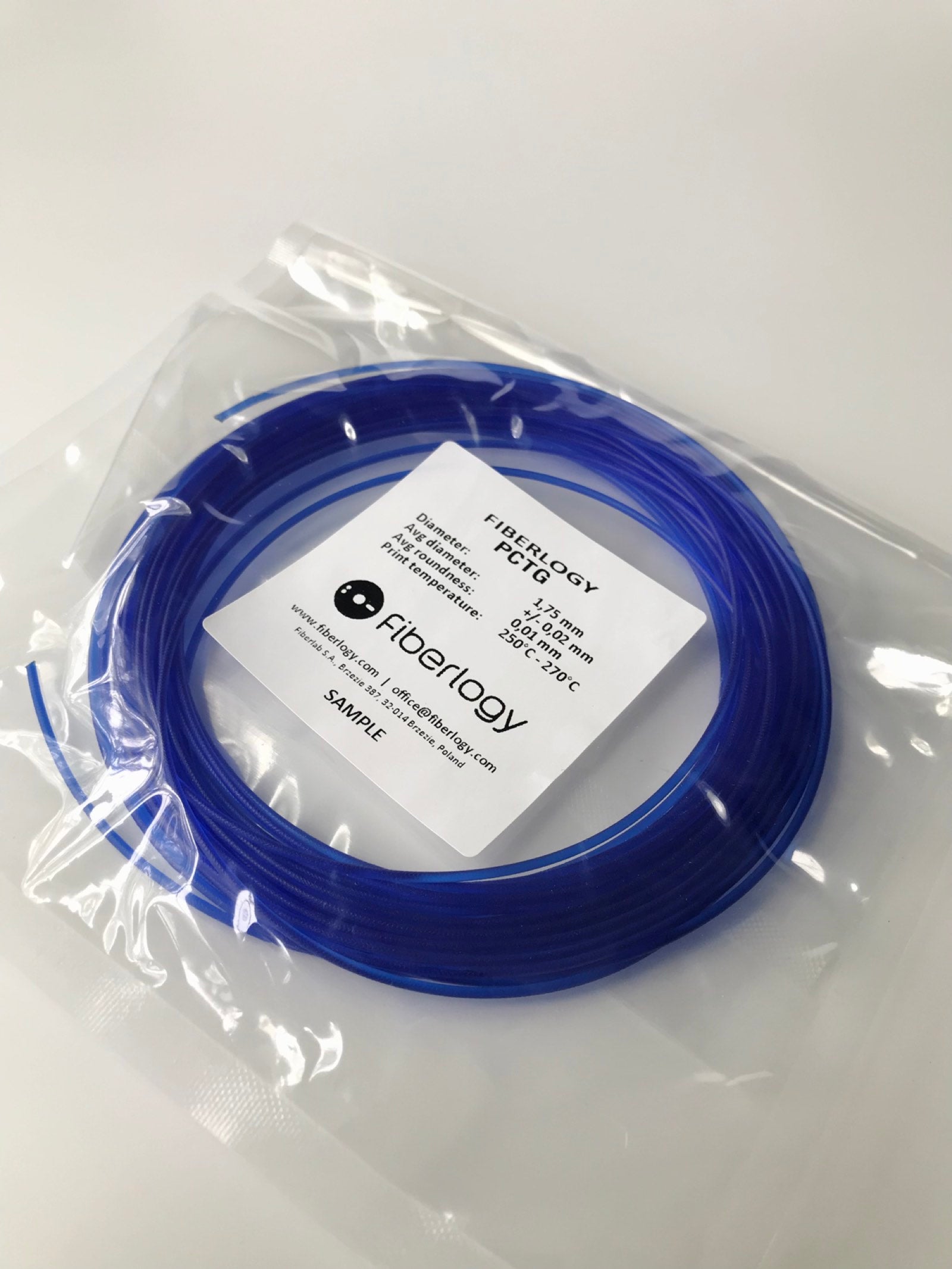

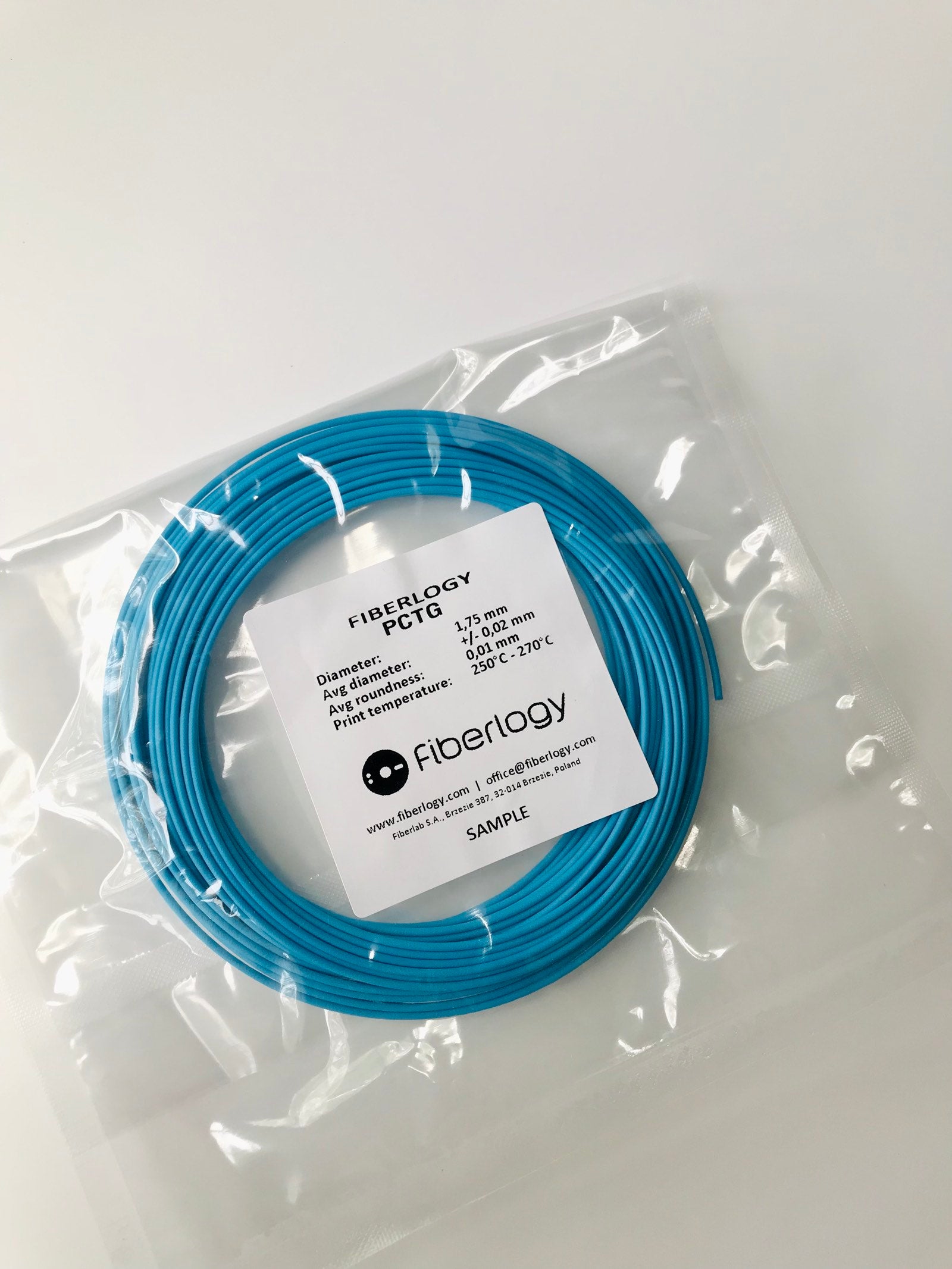

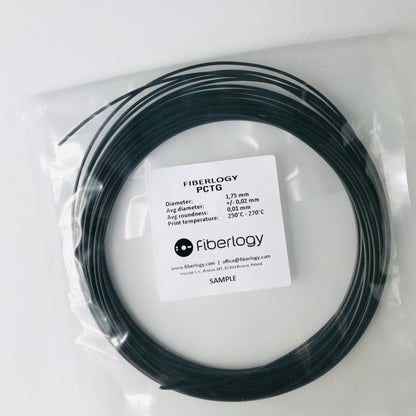

Sample Size:
- Samples are a great option for trying out a new material, color or when comparing different testing parameters of similar options.
- Samples vary in weight as different materials have different densities and generally range from 20-40 grams.
THE ALTERNATIVE TO PET-G
PCTG belongs to the same family of polyesters as the increasingly popular PET-G. Compared to its more popular counterpart, PCTG offers increased impact strength, temperature resistance and clarity, making it an excellent alternative to PET-G.
This filament does not require a heated chamber, which makes it ideal for use with home printers. It ensures high dimensional stability, while low shrinkage prevents the model from cracking. This makes it an easy-to-print material, even for people without a lot of experience in 3D printing.
PCTG is characterized by a much higher impact strength compared to similar materials (e.g. PET-G). It achieves results in the region of 90 KJ/m2 (PET-G: 5-8 KJ/m2) in the Izod test (notched sample). PCTG also withstands higher temperatures (up to 76°C).
Fiberlogy PCTG is recyclable and approved for contact with food *.
This material is also BPA free.

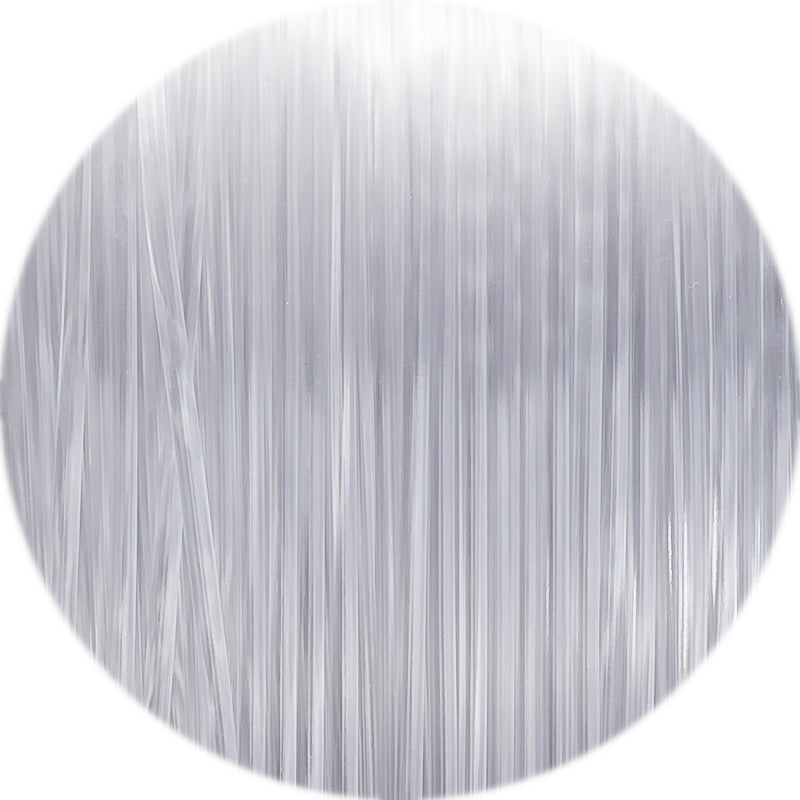

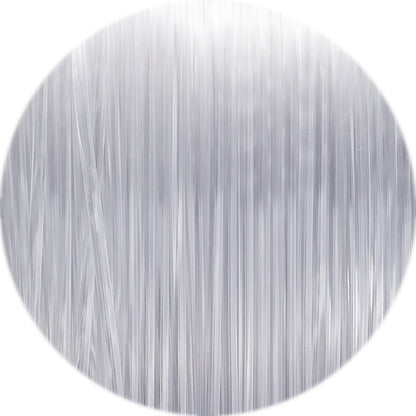

* applies to the Pure TR version
Printing Ideas and Applications:
- INDUSTRY: spare parts, short series, utility models
- AUTOMOTIVE: elements in the engine compartment, housing of vehicle components, air intakes, fluid funnels
- SPORT: accessories, pads, airsoft elements
How to Print:
Nozzle Temperature | 250-270°C |
Bed Temperature | 90-110°C |
Closed chamber | not required |
Fan | 25-50% |
Flowrate | 90-100% |
Printing Speed | < 100 mm/s |
Surface | masking tape, PVA glue, hairspray |
Retraction (direct) | 1-2 mm |
Retraction (bowden) | 4-6 mm |
Retraction Speed | 20-45 mm/s |
Drying conditions | 60°C / 4h |
Notes | Due to the strong adhesion to the bed, it is not recommended to print directly on its surface or on glass. This can lead to damage. We recommend using a masking tape. |
TDS and MSDS:
Net Weight: 0.75kg
FIBERLOGY 3D Printing filament comes wound on a premium white spool in vacuum sealed bag with a desiccate packet to maintain peak conditions.
